Springbird

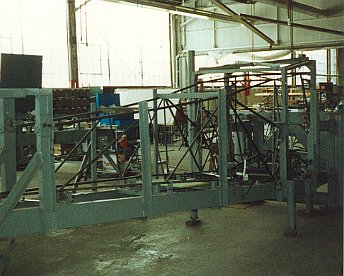

1990 – Factory fuselage jig at Lockhaven, PA

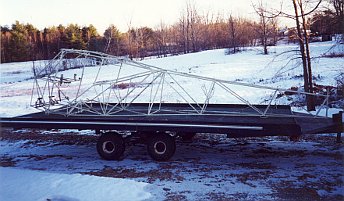

1997 – Hauling in borrowed fuselage frame

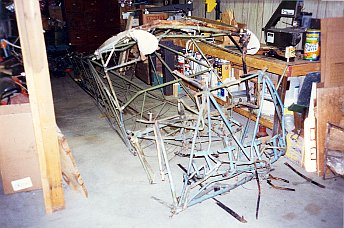

1997 – Wreck cut up for tube sizes

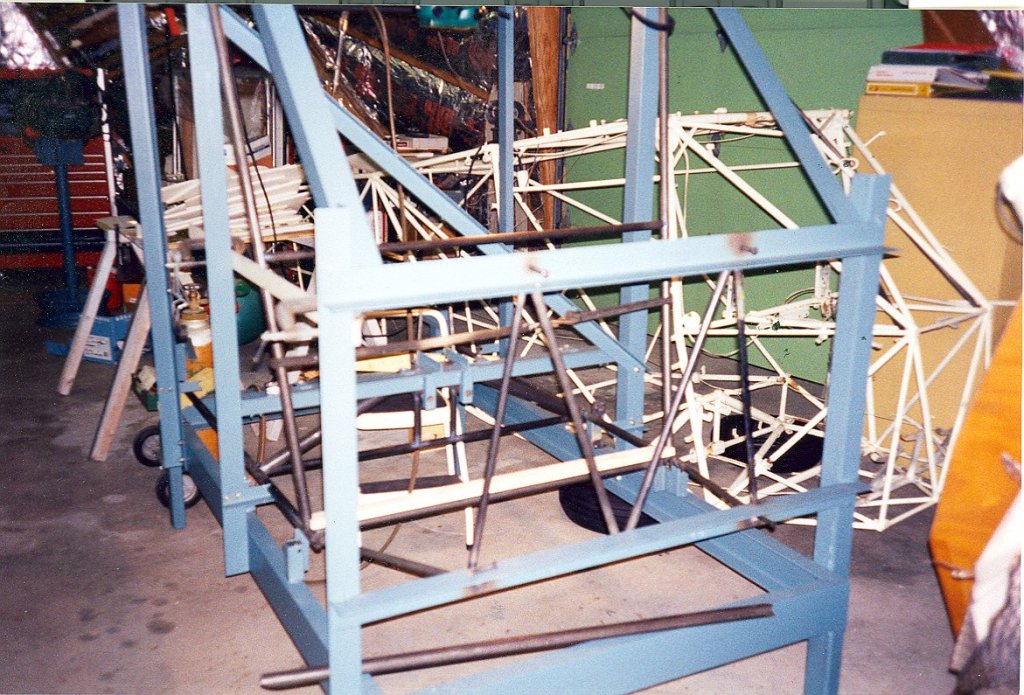

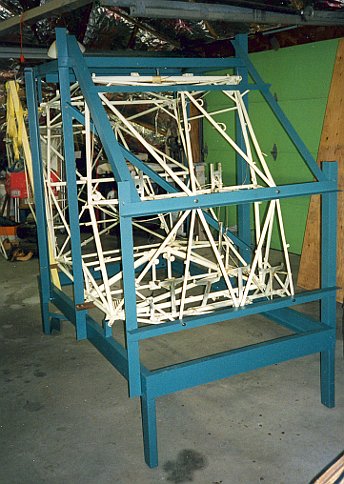

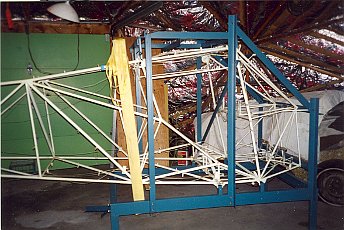

1998 – Jig building
1998 – Jig building
1998 – Jig building

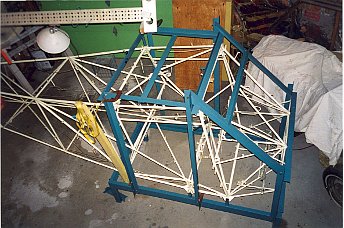

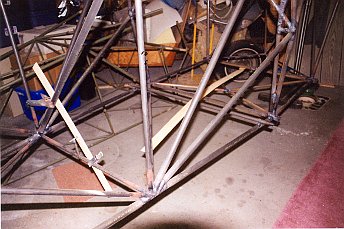

1998 – Starting assembly at front of cabin area

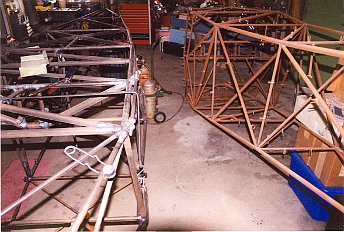

1998 – Returning borrowed fuselage frame
2005 – Installing windshield braces

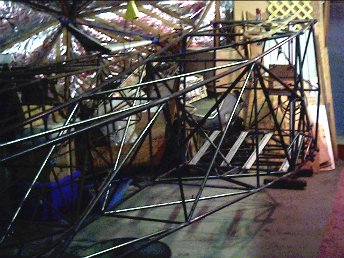

2005 – Nearly finished fuselage frame
2005 – Installing landing gear lugs
2006 – Installing control brackets

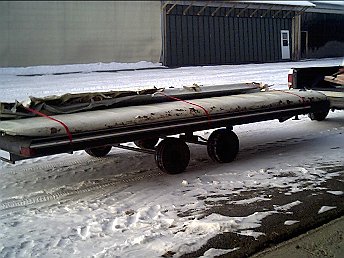

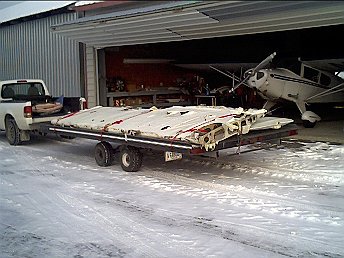

2006 – Salvaged wings scrounged from Bar Harbor, ME
2006 – Salvaged wings scrounged from Bar Harbor, ME

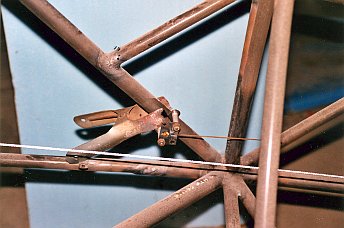

2007 – Installing trim fairleads
2007 – Installing control fairleads

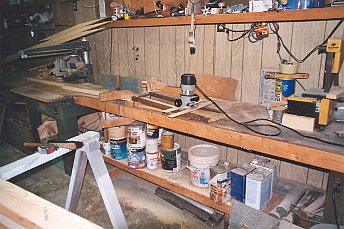

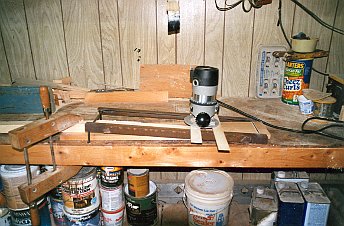

2008 – Scarfing spruce spar strips
2008 – Scarfing spruce spar strips

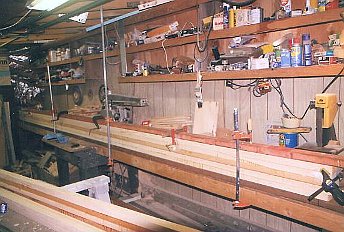

2008 – Laminating spars

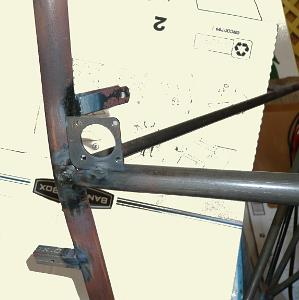

2010 – installing shoulder belt lugs
2010 – making instrument panel mounts
2010 – panel mounts installed

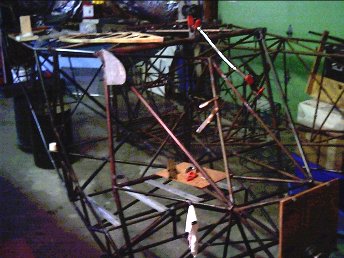

2010 – wire brushing fuselage frame

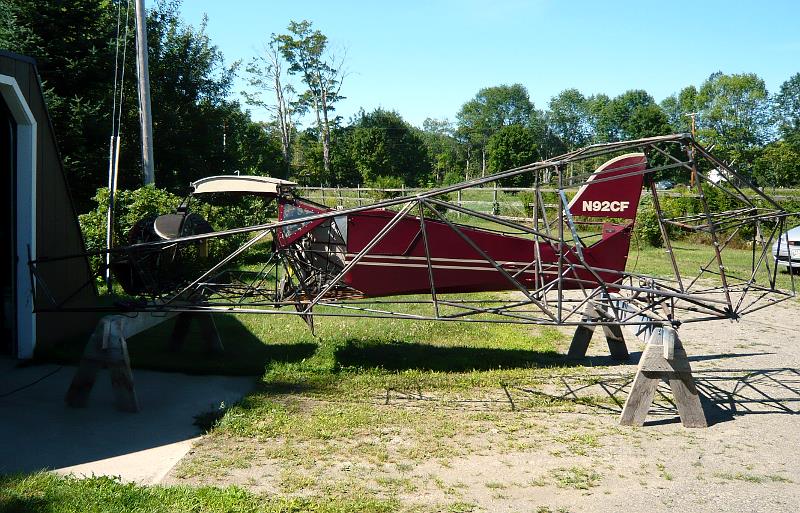

2010 – fuselage frame epoxy primed

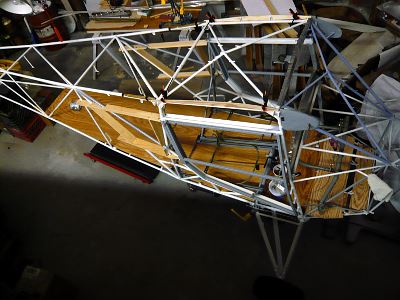

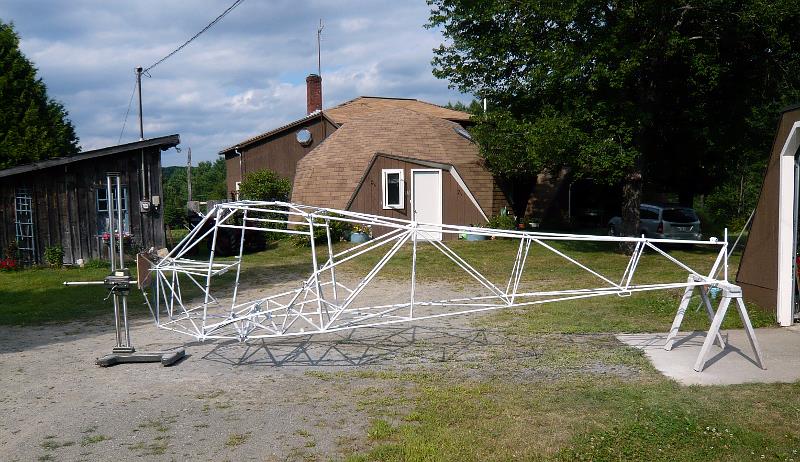

2010 – Overview of fuselage assembly

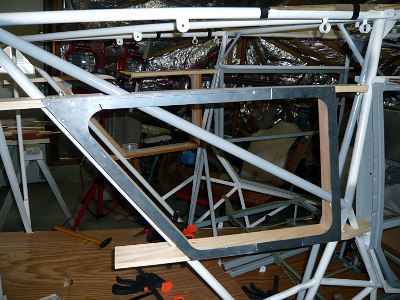

2010 – Rear quarter window framed up

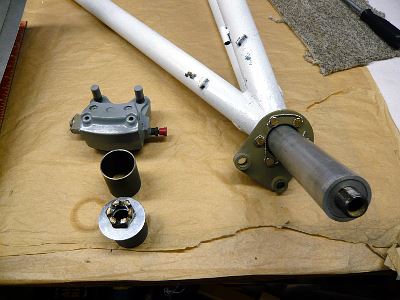

2010 – Caliper brackets installed for Cleveland brakes

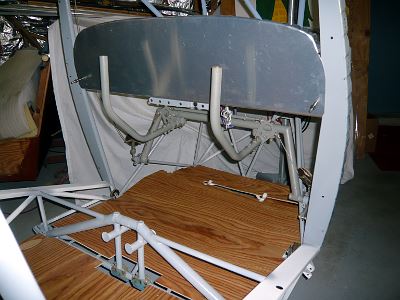

2010 – Adjusting the angle of Auster control stick
2010 – Auster control sticks

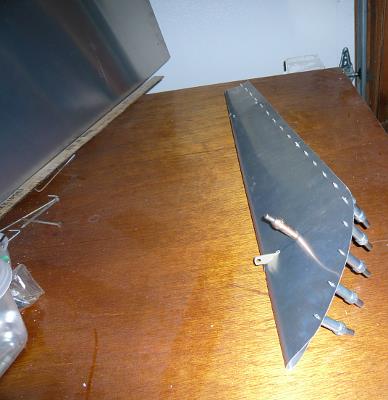

2010 – Trim tab fabrication

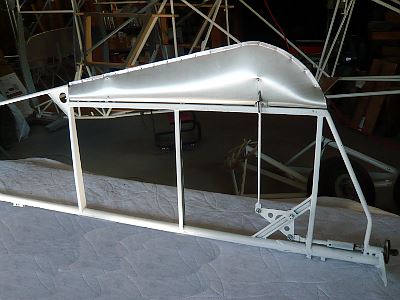

2010 – Trim tab installed

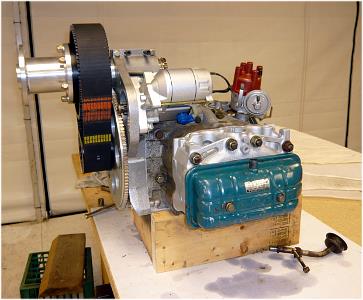

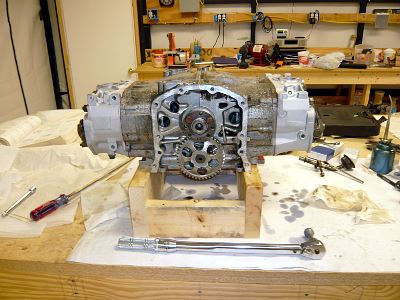

2011 – Subaru EA-81 engine going together
2011 – Subaru EA-81 engine going together

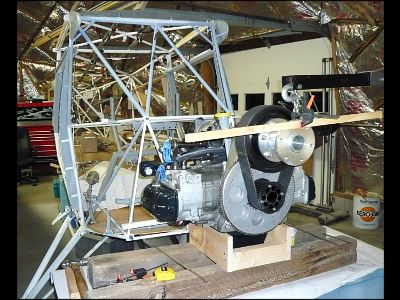

2011 – Reduction drive installed

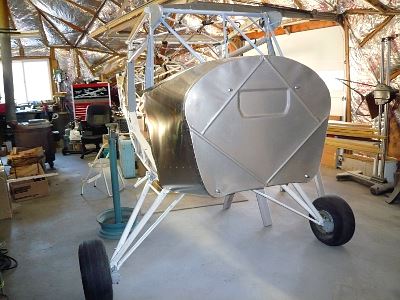

2011 – New firewall and boot cowl installed
2011 – Engine aligned with fuselage-was able to confirm height
by bore sighting through the prop extension/top pulley

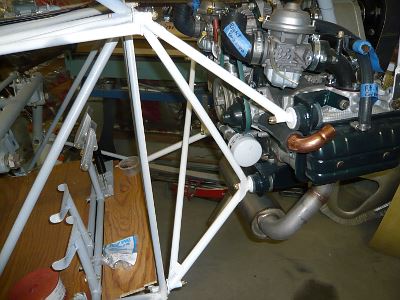

2011 – Engine mount tubing fitted in place
2012 – Completed engine mount

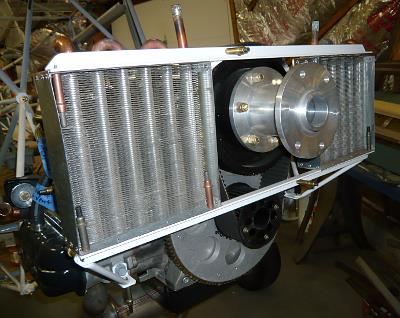

2012 – Radiator installation in progress

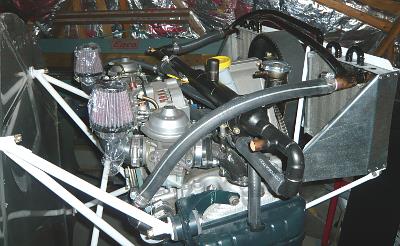

2013 – Cooling system plumbed up

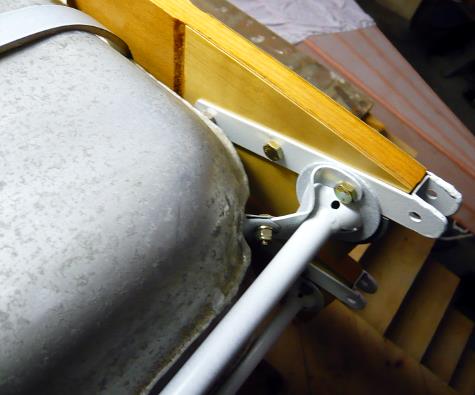

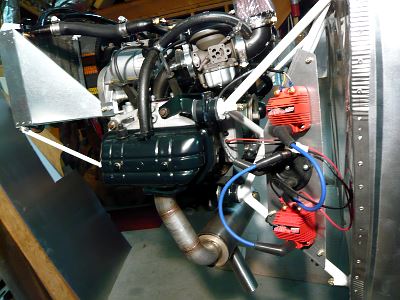

2012 – Dual ignition set up

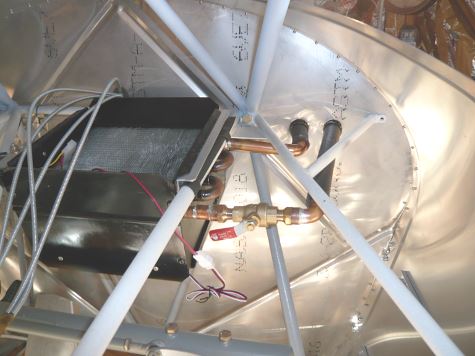

2015 – Cockpit heater installation

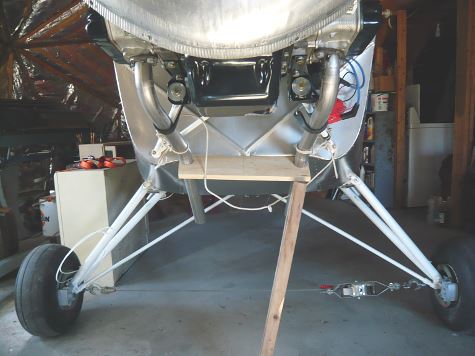

2015 – Exhaust pipe jigging

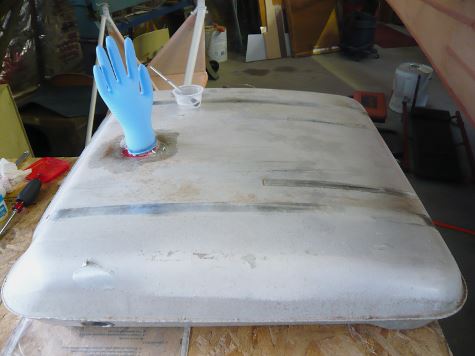

2016 – Leak testing wing tank
2016 – Wing tank installation
2016 – Cross brace bracket
2016 – Getting there – fuselage painted

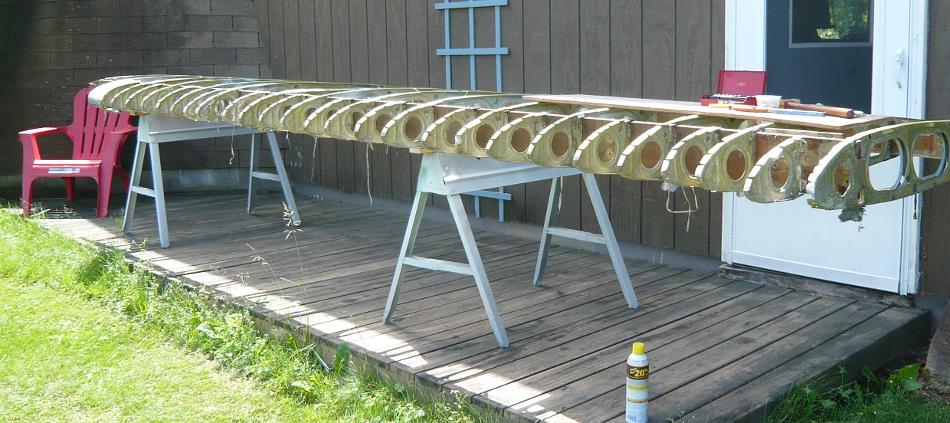

2016 – Salvaging ribs from an old wing

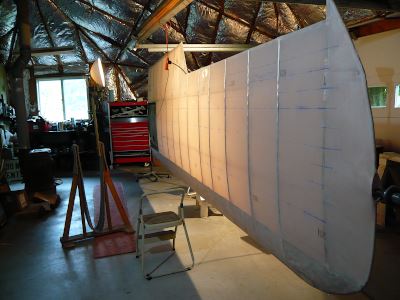

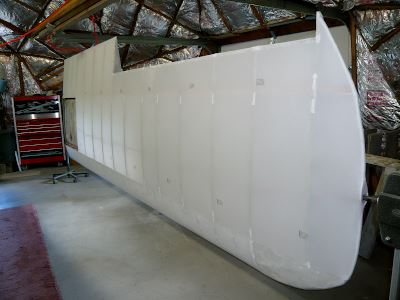

2016 – Wing fabric shrunk
2016 – Rib stitching

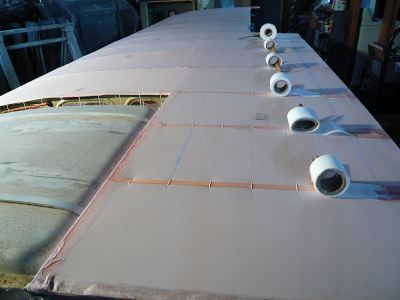

2016 – Surface tape application

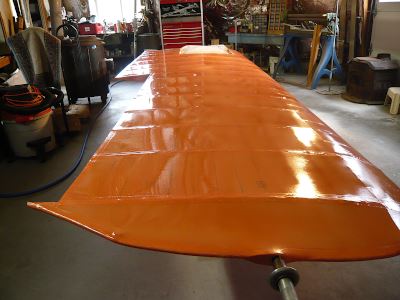

2016 – Polybrush spray coats

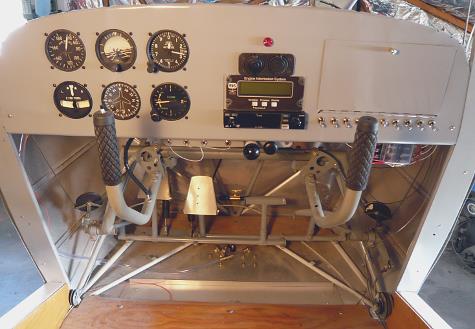

2016 – Control panel
2016 – Control panel with tablet in use position

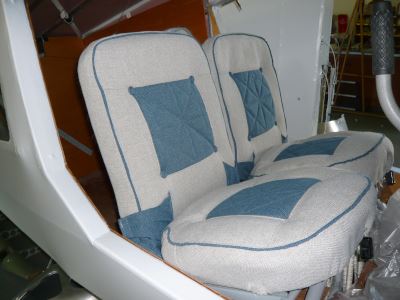

2016 – Cessna 172 seats installed

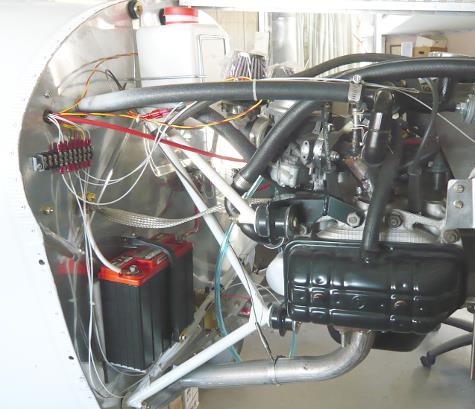

2016 – Completed engine compartment

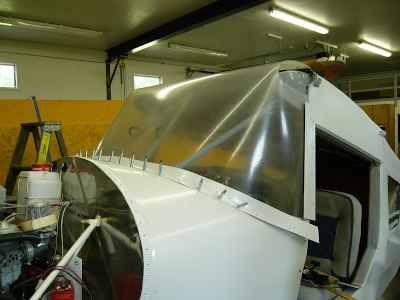

2020 – Windshield installation

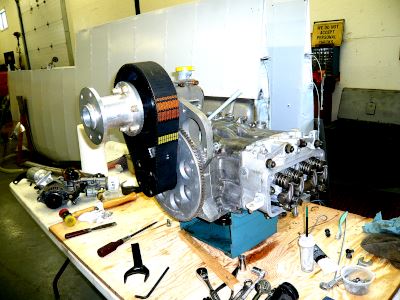

2021 – Engine reassembly after water got in one cylinder
